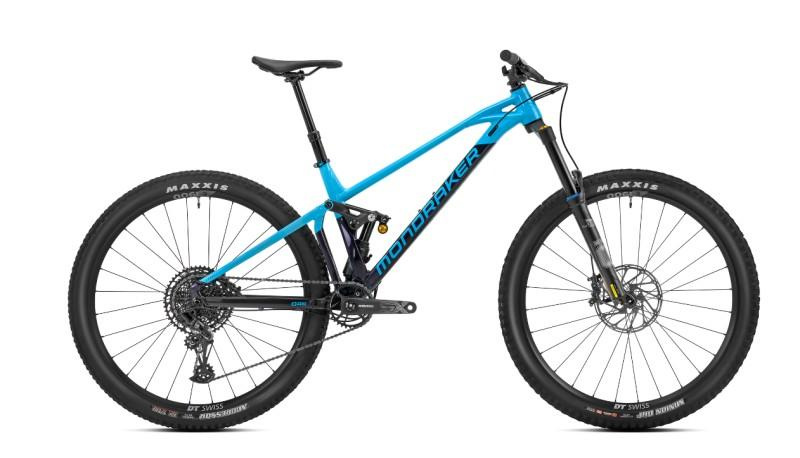

MONDRAKER MONDRAKER Foxy R, deep purple/light blue, 2023 Velikost XL

E-shop

XL

jaro/léto 23

unisex

Mix

S

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ox45o, bottom 51.9x40x8x45ox45o

Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

SDG BEL-AIR 3.0, LPU foam, steel rails

ALUMINIUM

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

SUSPENSION FORK

Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Sram G2 R, SwingLink, tool-free reach adjust

Onoff Sulfur FG 30mm 0o, 6061 forged alloy, 31.8mm barbore

32T, CNC-machined alloy, X-SYNC 2

Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Sram DUB BSA, sealed bearings, 73mm

Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

29

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm

1X12

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9o backsweep, 5o upsweep, 31.8mm barbore

Sram SX Eagle, 12s, Powerlock

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, fold ing bead

Mondraker M068

Sram XG-1230, 11-50T, 12s

15,7 kg

C20 compression, R35 rebound

Öhlins TTX Air 205x62.5mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Před použitím ověřte, zda je výrobek správně smontován a bez viditelného poškození.

SML

cycling PCI

Hardware

Horské kolo

bicycle-HW

mtb-HW BIC

size_frame

M
