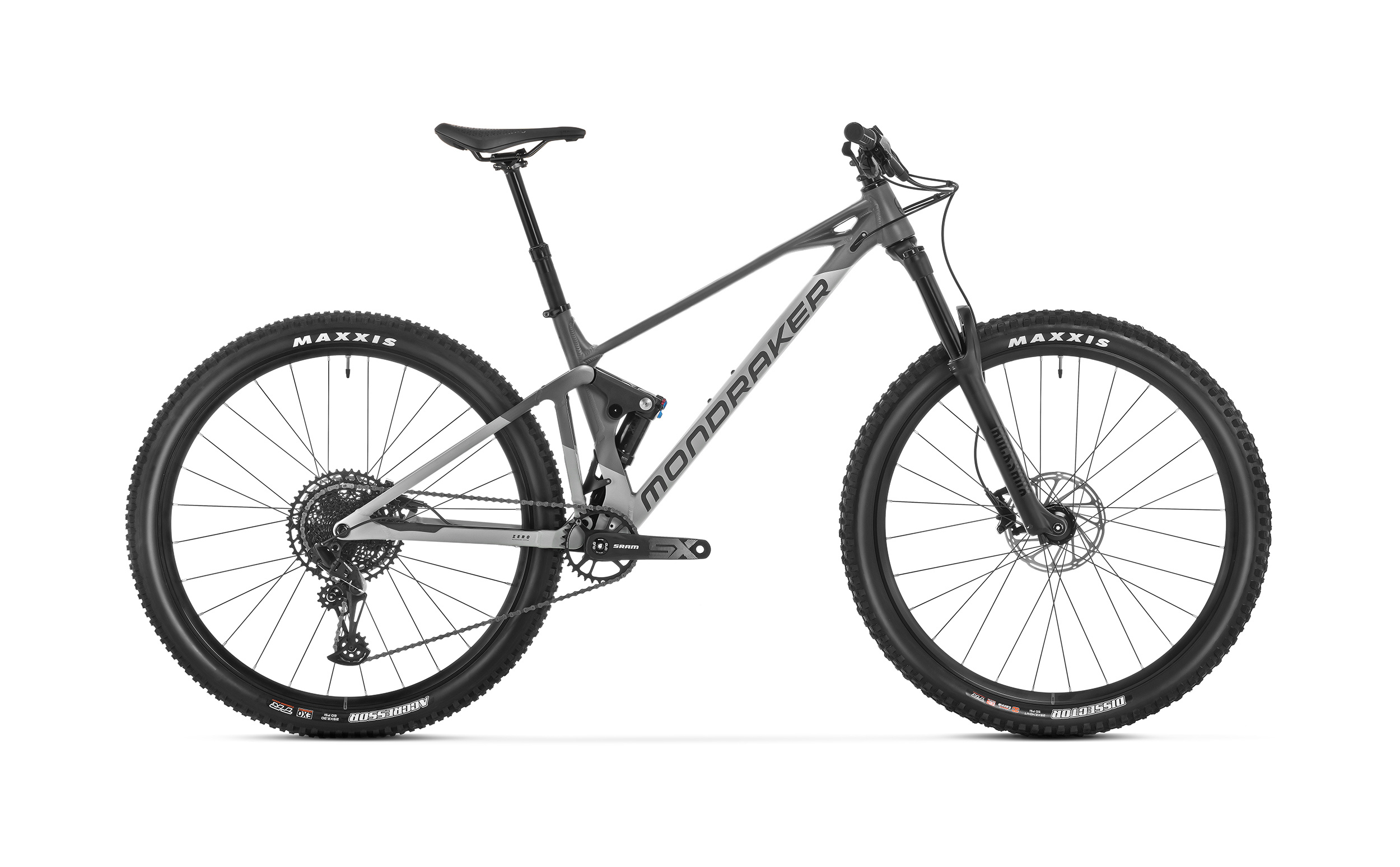

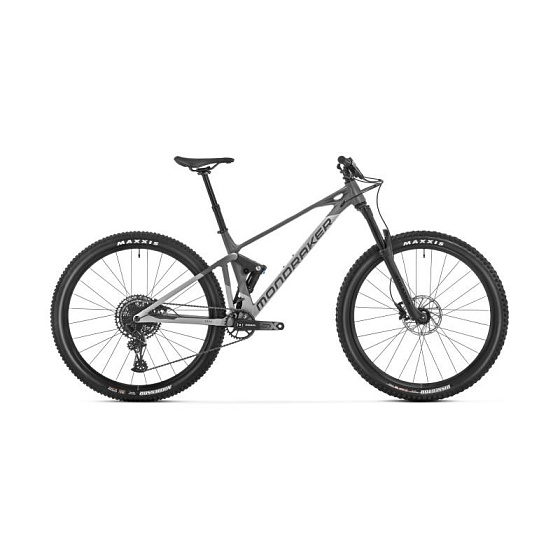

MONDRAKER MONDRAKER Raze, fog grey/nimbus grey/vortex grey, 2024 Velikost L

L

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45?x45?, bottom 51.9x40x8x45?x45?

RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Mondraker MDK Series, SRX, steel rail

ALUMINIUM

Mavic 28 round j-bend stainless steel

SUSPENSION FORK

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Onoff Sulfur FG 30mm 0?, 6061 forged alloy, 31.8mm barbore

32T, steel, X-Sync 2

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Sram DUB BSA, sealed bearings, 73mm

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

29

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52

1X12

Mavic CrossRide 29 Boost, 30mm internal width, tubeless ready, 28 spokes

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore

Sram SX Eagle, 12s, Powerlock

Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub

Mavic Boost 15x110mm, sealed bearings, IS 6 bolts

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Sram UDH

Sram PG-1210, 11-50T, 12s

15,9 kg

Light compression, light rebound, air volume spacer 0.6

Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

jaro/léto 24

unisex

Grey

L

Před použitím ověřte, zda je výrobek správně smontován a bez viditelného poškození.
