MONDRAKER Foxy Carbon R 29, cherry red/carbon, 2022 Velikost M
Description and parameters

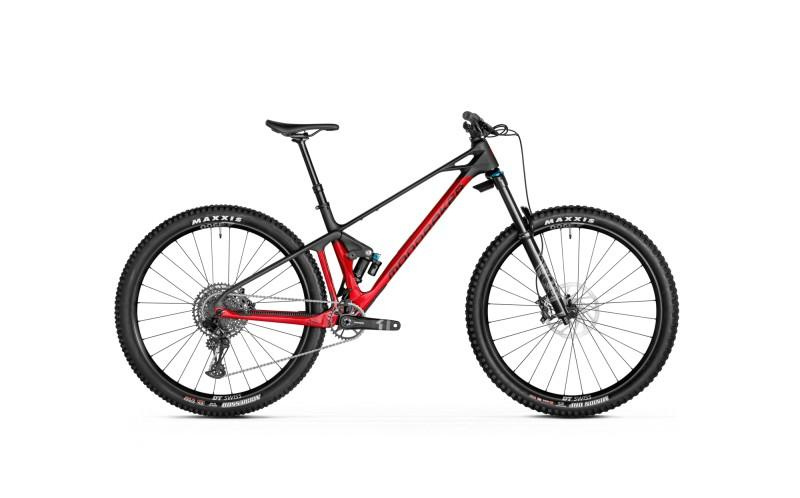

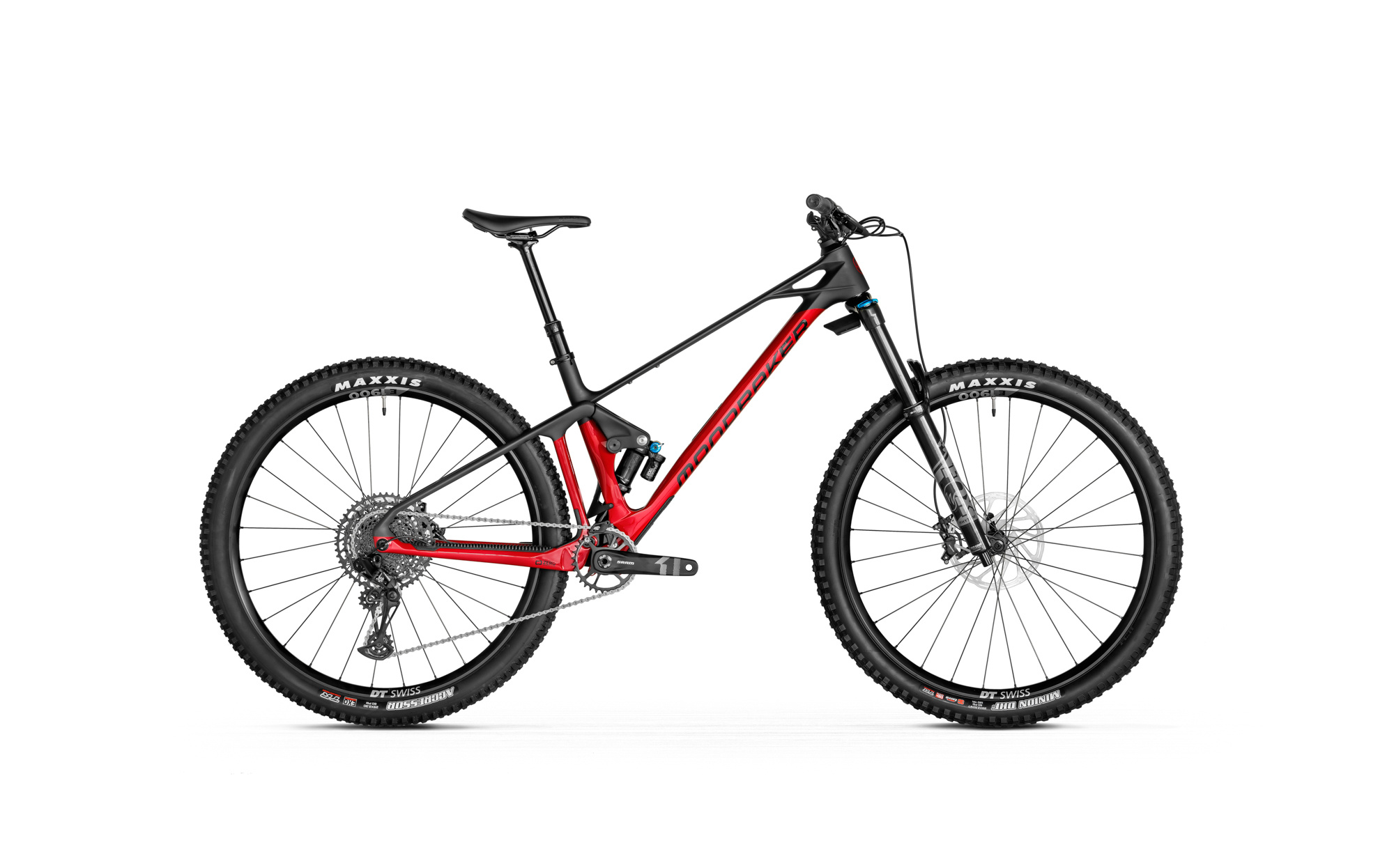

MONDRAKER Foxy Carbon R 29, cherry red/carbon, 2022
ParametersAdd to Compare
Root
E-shop
Root
B2B
Shop type
SML
Activity
cycling PCI
Category
Hardware
SEO description
Horské kolo
Group
bicycle-HW
Subgroup
mtb-HW BIC
Eshop size group
size_frame
Size
M
Supplier size group
supplier_size_hardware
Filter of specific parameters
HW
Přehazovačka
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Hlavové složení
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Vidlice
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Velikosti
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rám
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit. Without MIND device.
Sedlo
SDG BEL-AIR 3.0, LPU foam, steel rails
Materiál rámu
carbon
Dráty
DT Champion, straightpull
Typ vidlice
SUSPENSION FORK
Zadní brzda
Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brzdové páčky
Sram G2 R, tool-free reach adjust
Představec
Onoff Sulfur FG 30mm 0o, 6061 forged alloy, 31.8mm barbore
Převodník
32T, steel, X-Sync 2
Sedlovka
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Středové složení
Sram DUB BSA, sealed bearings, 73mm
Přední brzda
Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Velikost kol
29
Kliky
Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Počet převodů
1X12
Ráfky
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
Řídítka
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9o backsweep, 5o upsweep, 31.8mm barbore
Řetěz
Sram NX Eagle, 12s, Powerlock
Zadní náboj
DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts
Přední náboj
DT 370, Boost 15x110mm, IS 6 bolts
Zadní plášť
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Řadící páčka
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Přední plášť
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Patka přehazovačky
Sram UDH
Kazeta
Sram XG-1230, 11-50T, 12s
Hmotnost
14,1 Kg
Nastavení tlumiče
Light compression, light rebound, air volume spacer 0.6
Zadní tlumič
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
MONDRAKER Foxy Carbon R 29, cherry red/carbon, 2022
