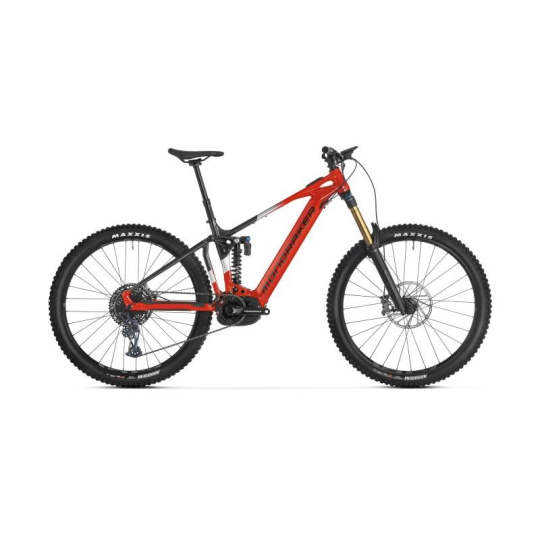

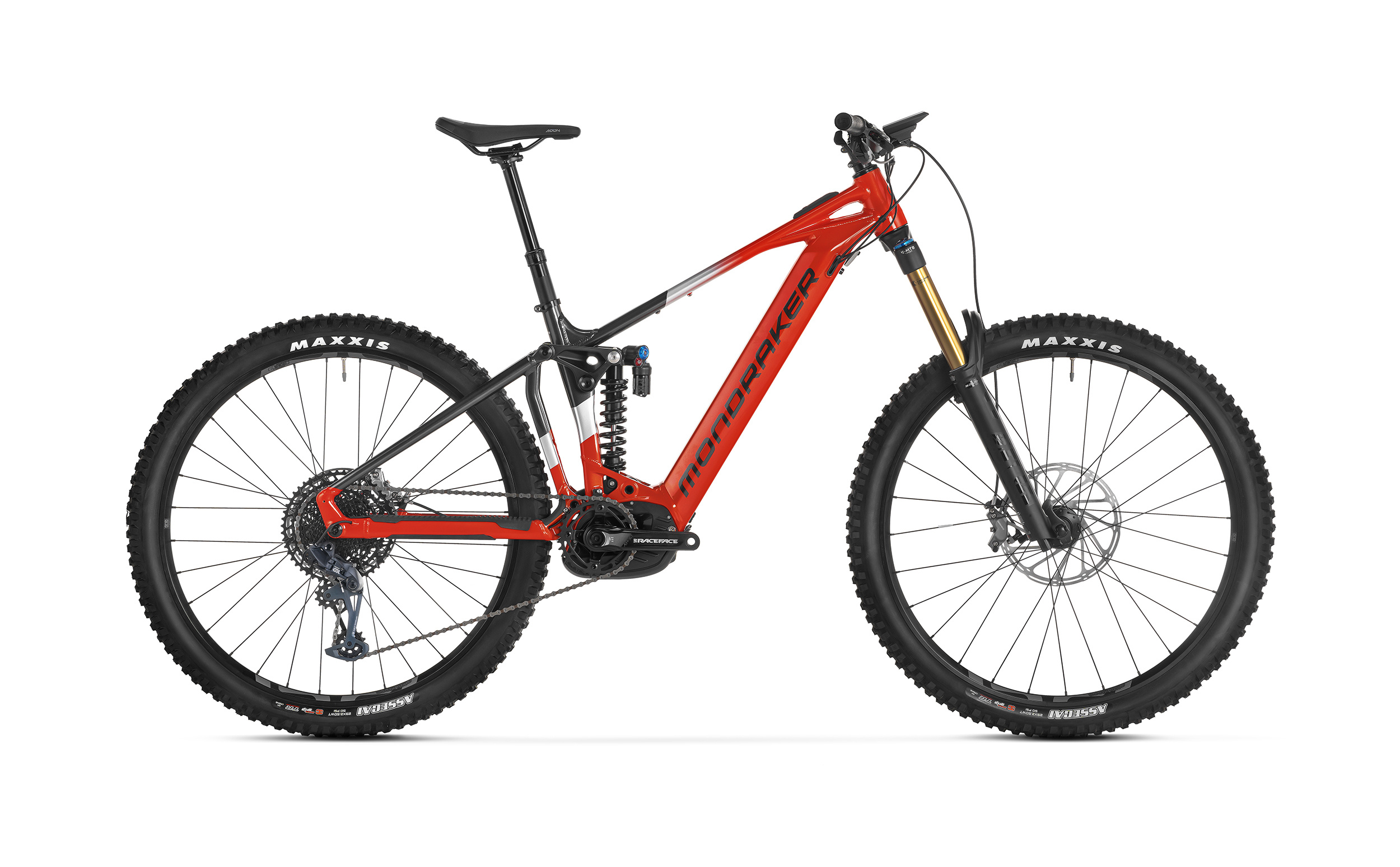

MONDRAKER MONDRAKER Level RR, flame red/vortex grey/racing silver, 2024 Velikost M

E-shop, B2B

SML

cycling PCI

Hardware

Horské elektrokolo

e-bicycle-HW

e-mtb-HW EBC

M

size_frame

L

supplier_size_hardware

HW

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45?x45?, bottom 51.9x40x8x45?x45?

Fox 38 29 Float FIT GRIP2 Factory Kashima, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers

FIZIK Terra Aidon X5 145mm

ALUMINIUM

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

SUSPENSION FORK

Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

29

Race Face Aeffect ebike, 165mm

1X12

e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum\n30mm internal width, tubeless ready, 28F / 32R spokes

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore

Sram SX Eagle, 12s, Powerlock

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub\n

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Mondraker M068

Sram PG-1210, 11-50T, 12s

26,9 kg

Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM

Bosch Powertube 750Wh

Medium compression, medium rebound. Spring rate: S size 300 lbs, M size 300 lbs, L size 350 lbs, XL size 400 lbs

Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings

jaro/léto 24

unisex

Red

L

Před použitím ověřte, zda je výrobek správně smontován a bez viditelného poškození. Baterii chraňte před přehřátím, vlhkostí a mechanickým poškozením. Nabíjejte jen doporučenou nabíječkou.
